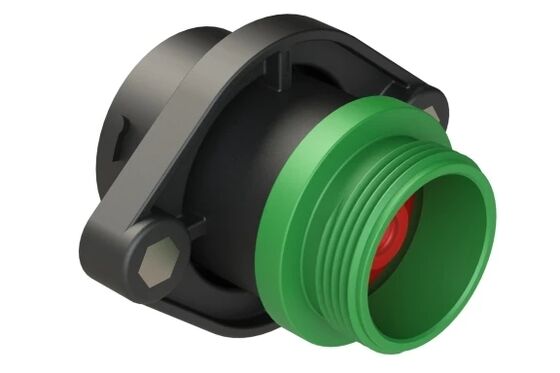

IP68 IP69K Ingress Protected Amphenol AHDP02-24-07SN-STA Female Receptacle Insulated Housing With Full PCB Pad Drawing Files

  • IP68 IP69K Ingress Protected Amphenol AHDP02-24-07SN-STA Female Receptacle Insulated Housing With Full PCB Pad Drawing Files
Τόπος καταγωγής ΗΠΑ
Μάρκα Amphenol
Πιστοποίηση ROHS
Αριθμό μοντέλου AHDP02-24-07SN-STA
Ποσότητα παραγγελίας min 100
Τιμή 10USD
Συσκευασία λεπτομέρειες Ταινία & κύλινδρος (TR)
Χρόνος παράδοσης 2 έως 3 εβδομάδες
Όροι πληρωμής T/T
Δυνατότητα προσφοράς 10000
Λεπτομέρειες
Μπορείτε να σημειώσετε τα προϊόντα που χρειάζεστε και να επικοινωνήσετε μαζί μας στον πίνακα μηνυμάτων.
Model
AHDP02-24-07SN-STA
AHDP02-24-07PN-STACL22
AHDP02-24-07PN-STA
Αφήστε ένα μήνυμα
Model
Περιγραφή προϊόντων

IP68 IP69K Ingress Protected Amphenol AHDP02-24-07SN-STA Female Receptacle Insulated Housing With Full PCB Pad Drawing Files



Description

The AHDP02-24-07SN-STA is an Amphenol automotive female receptacle connector with IP68/IP69K heavy-duty ingress protection under mated status across full operating temperature range from -55°C to 125°C. It features stable electrical performance, superior waterproof & dustproof capability and consistent contact conductivity, which make it ideal for heavy-duty automotive wiring harness and PCB assembly applications. This 7-position connector adopts #12 specification contact diameter, rated for 80A at 40°C and 250V working voltage, compatible with wire gauge ranging from 2 to 10. The AHDP02-24-07SN-STA connector is available in standard bulk packaging.

Features

 7 Positions Automotive Female Receptacle Connector, #12 Contact Diameter
 IP68 / IP69K Heavy-Duty Ingress Protection When Mated
 Rated Current: 80A @40°C, Rated Voltage: 250V
 Wide Operating Temperature Range from -55°C to +125°C, applicable for wire gauge 2~10
 Totally Lead-Free; RoHS Compliant
 Standard Bulk Packing
 Totally Lead-Free & Fully RoHS Compliant
 Halogen and Antimony Free. “Green” Device





Applications

 Charger
 Voltage Adapter
 Switching Power Supply
 Graphic Card
 Precision Voltage Reference



Category Automotive / Female Receptacle Connector
Mfr Amphenol
Product Status Active
Voltage - Output (Max) 250 V
Current - Output 80 A @40°C
Operating Temperature -55°C ~ +125°C
Mounting Type Board Mount
Package / Case Bulk Pack
Number of Positions 7 Positions
Gender Female
Contact Diameter #12
Mated IP Rating IP68 / IP69K
Compatible Wire Gauge 2 ~ 10





ORIGINAL



Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.



PRICE



We provide a variety of quotation channels, and sign the order contract after negotiation.



TRANSACTION



After communication and agreement, we will guide you to arrange payment.



DELIVERY CYCLE



Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.



TRANSPORT



We will choose the appropriate transportation mode according to your country.
